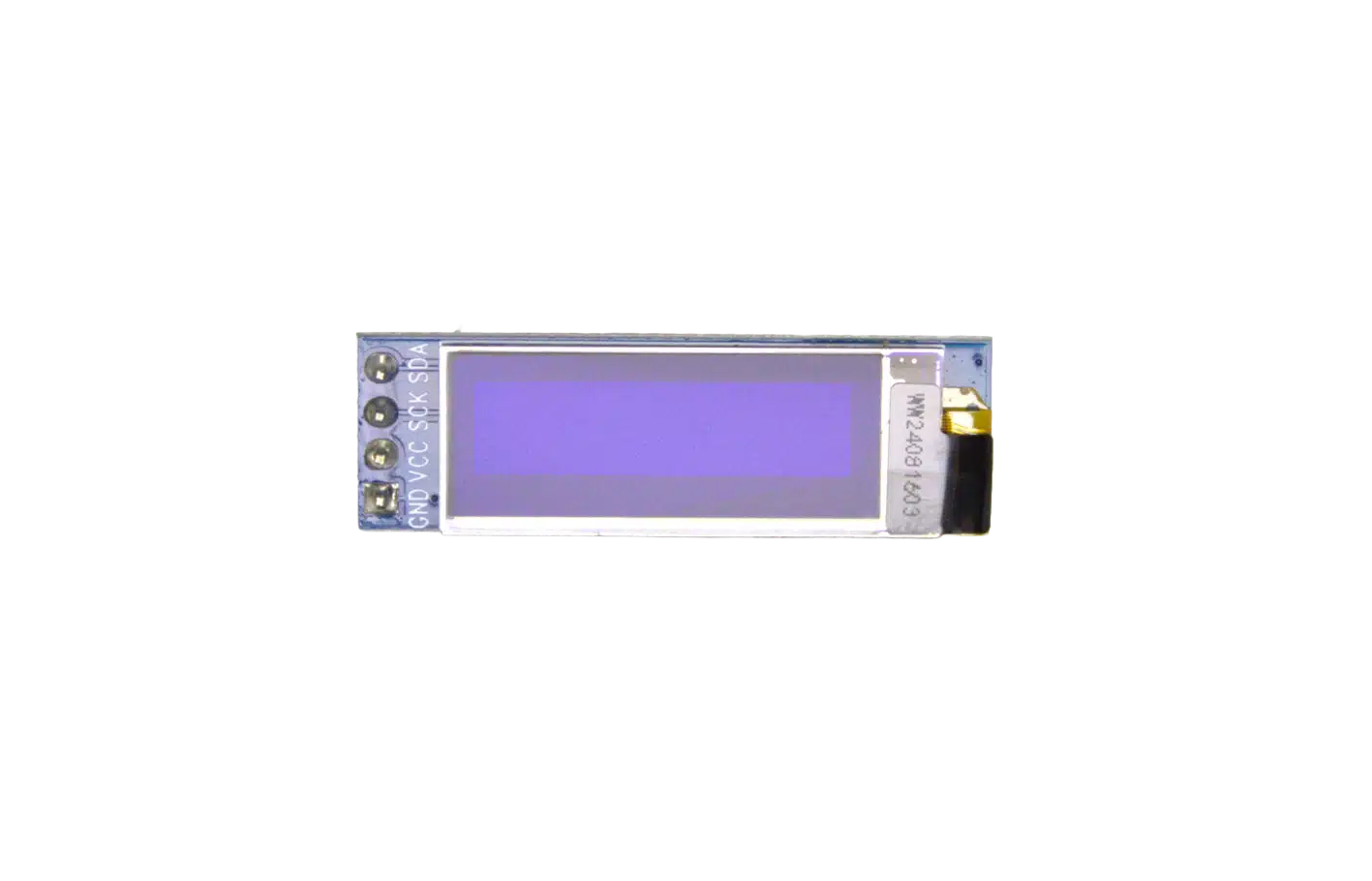

Bitaxe Replacement OLED Screen

Description

Bitaxe Replacement OLED Screen: Detailed Product Overview

What This Bitaxe Replacement Screen Does for You

• Restores live hashrate and temperature readouts on any supported Bitaxe model.

• Matches the original board layout, SSD1306 driver, and I²C 4-pin pinout used by Bitaxe engineers.

• Low power draw: < 20 mA—keeps overclocking headroom intact.

• Rated -30 °C – +70 °C, ideal for garages, sheds, and hash-caves.

• Backed by Solo Satoshi’s same-day shipping, 90-day no-quibble warranty, and live US-based tech support.

Key Features and Benefits

• OEM quality – identical to the factory screen on Bitaxe miners.

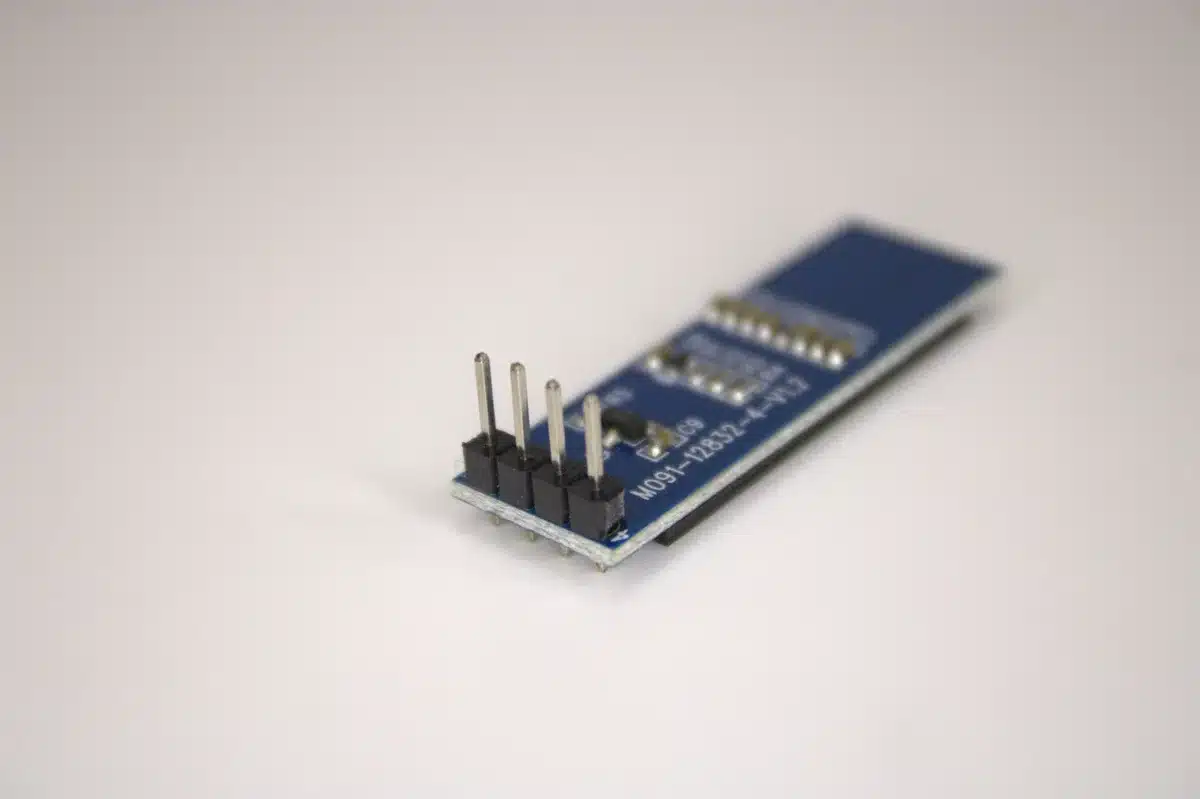

• Plug-and-play – pre-soldered GND | VCC | SCL | SDA header means zero soldering.

• Ultra-slim – only 4 mm thick, perfect for tight enclosures.

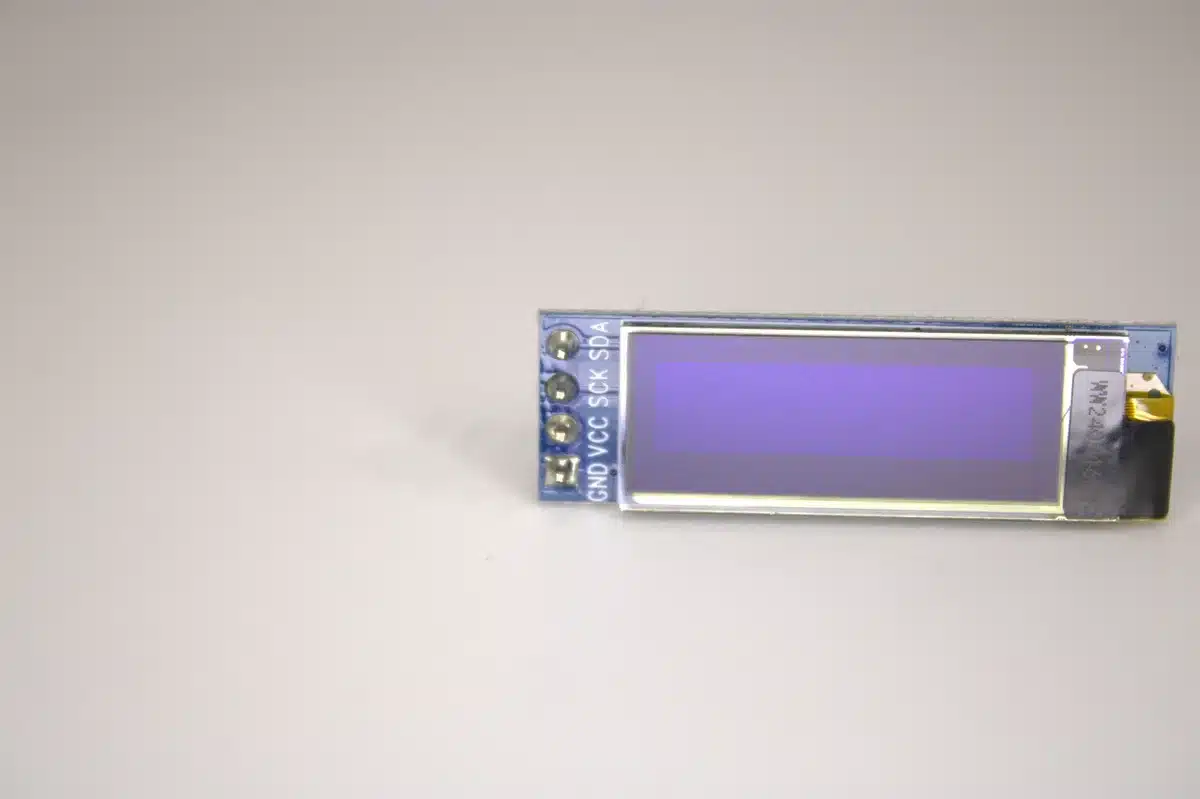

• High contrast – passive-matrix OLED is readable from any angle without a backlight.

Technical Specifications

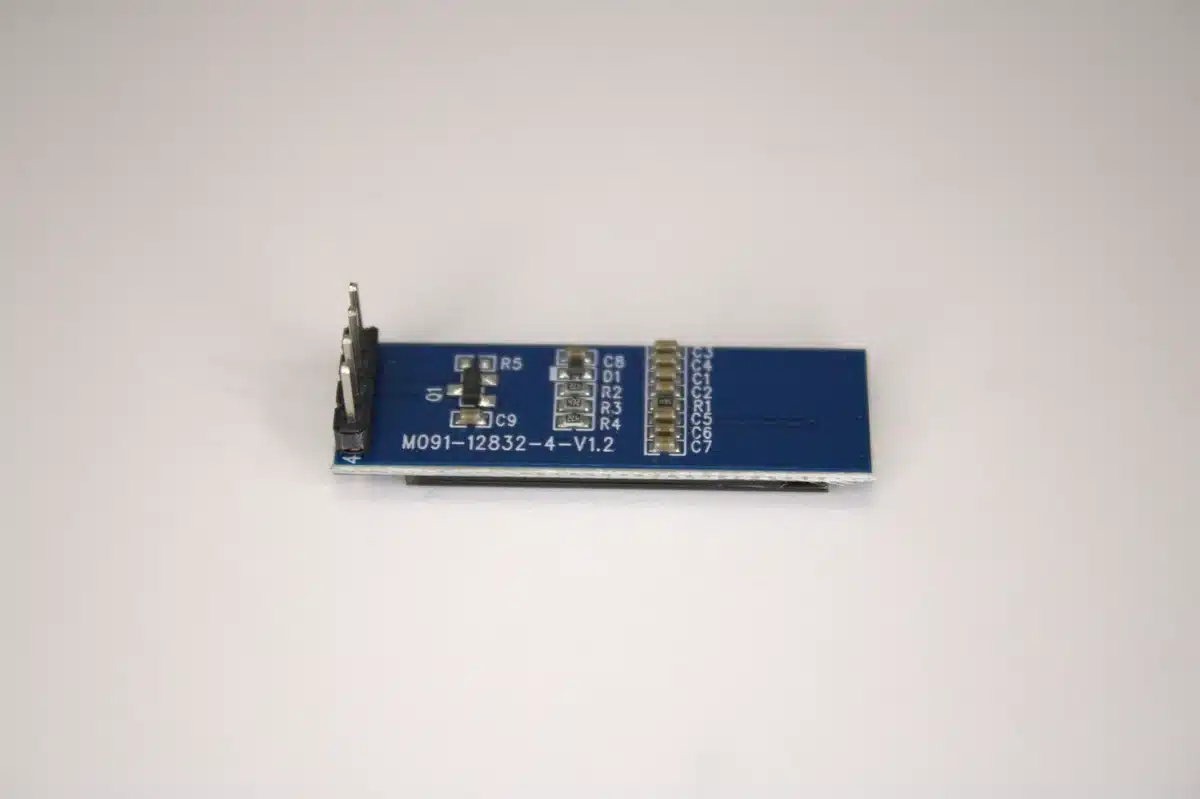

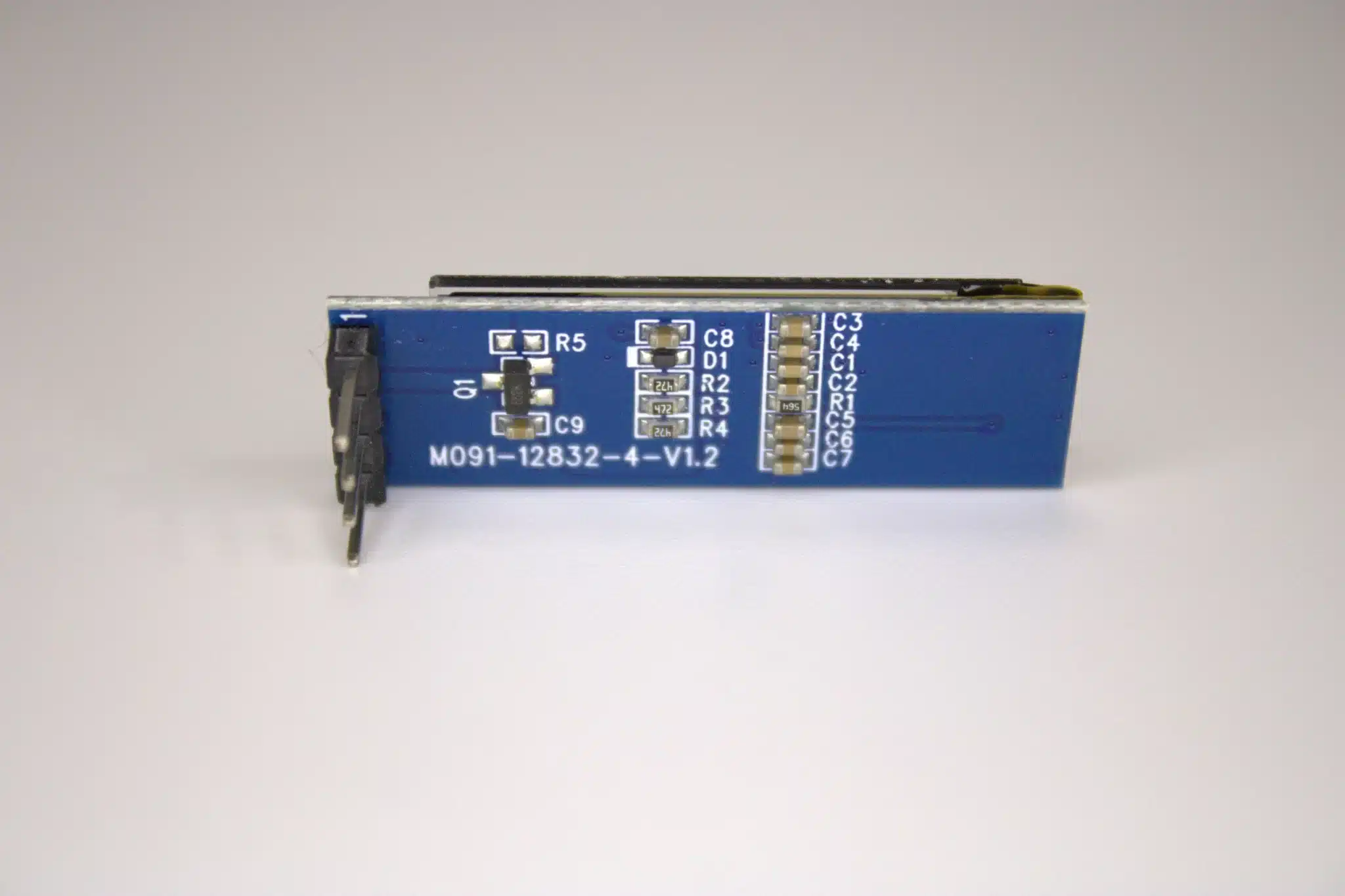

• PCB size: 38 mm × 12 mm × 4 mm (≈ 1.50″ × 0.47″ × 0.16″)

• Active display area: 25 mm × 7 mm

• Resolution: 128 × 32 pixels

• Driver IC: SSD1306

• Interface: I²C (400 kHz), 4-pin header

• Supply voltage: 3.3 V – 5 V DC

• Typical current draw: < 20 mA

• Operating temperature: -30 °C – +70 °C

Compatibility & Use Cases

• Drop-in replacement screen for Bitaxe Max, Ultra, Supra, Gamma, and GT.

• Great for Arduino, ESP32, or Raspberry Pi projects needing a slim 128 × 32 I²C OLED.

• Perfect for field repairs when you need a bright, low-power screen on-site.

What’s in the Box

• 1 × OEM Bitaxe 0.91-inch OLED screen with 4-pin header attached

• Quick-swap instruction card from Solo Satoshi technicians

Installation: 3-Step Guide

1. Disconnect the PSU to power down the Bitaxe.

2. Pull the old screen straight up to free the header; align the new Bitaxe replacement OLED screen and press until fully seated.

3. Reconnect power. Stats should appear within 10 s; if blank, reseat.

Shipping & Warranty

Orders placed before 12:00 p.m. CST ship the same day from Houston, Texas. Every screen is covered by our 90-day money-back warranty and lifetime email support from real Bitaxe experts.
