XT30 Female Pigtail 1 Meter 16 AWG

Description

XT30 Female Pigtail Overview

Power your Bitaxe GT or NerdQaxe++ cleanly from a Mean Well LRS-600-12 with this XT30 female pigtail. The cable uses UL2464 16 AWG red and black conductors with a flexible PVC jacket and pre tinned ends for a secure connection to the LRS output or a distribution block. It is the simple way to fan out one high quality 12-volt supply to multiple miners with neat polarity and minimal voltage drop.

Important

Ring or fork terminals are not included. Please purchase the correct ring or fork terminals separately to match your power supply or distribution block.

Highlights

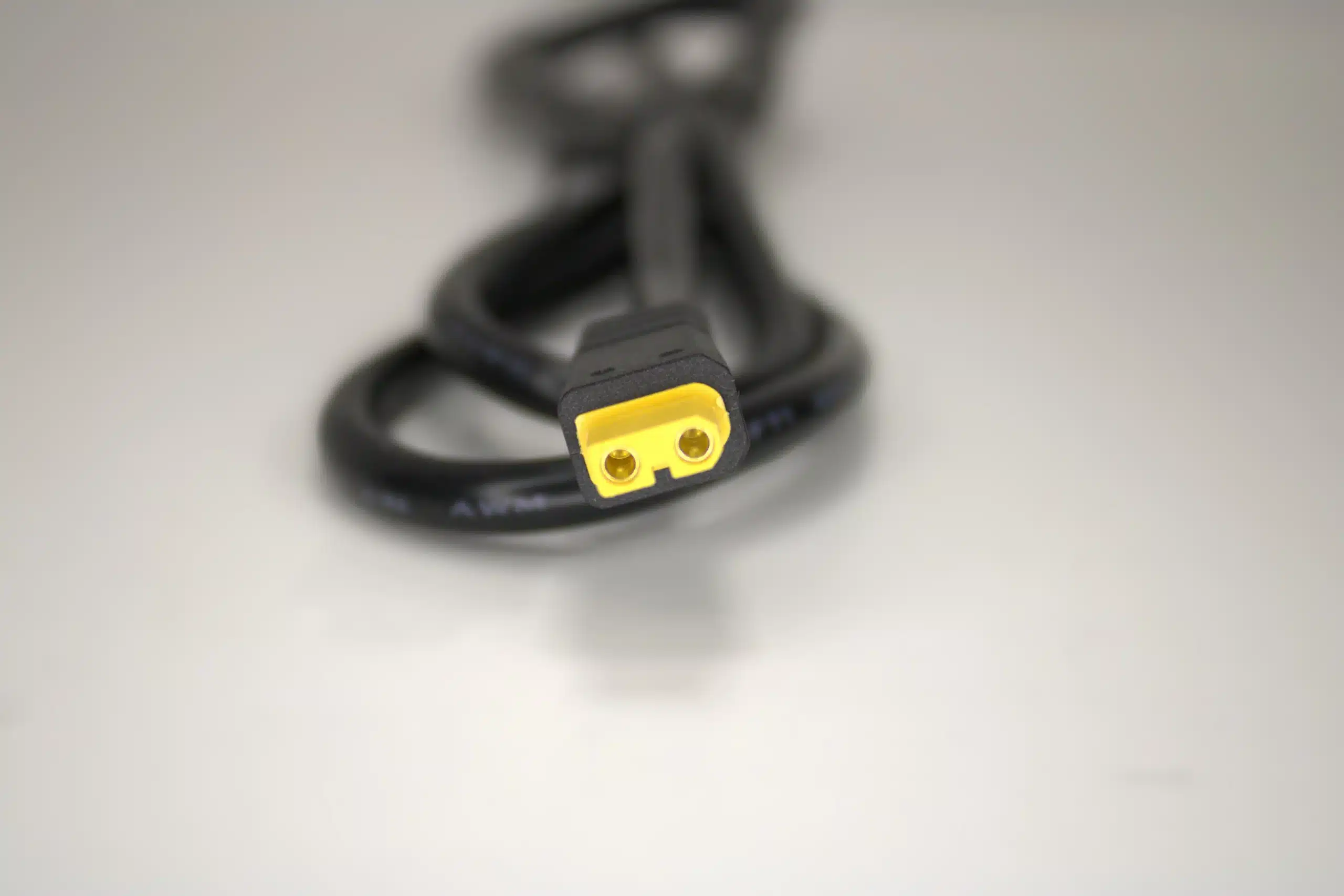

• XT30 female on the device side for a tight low resistance fit.

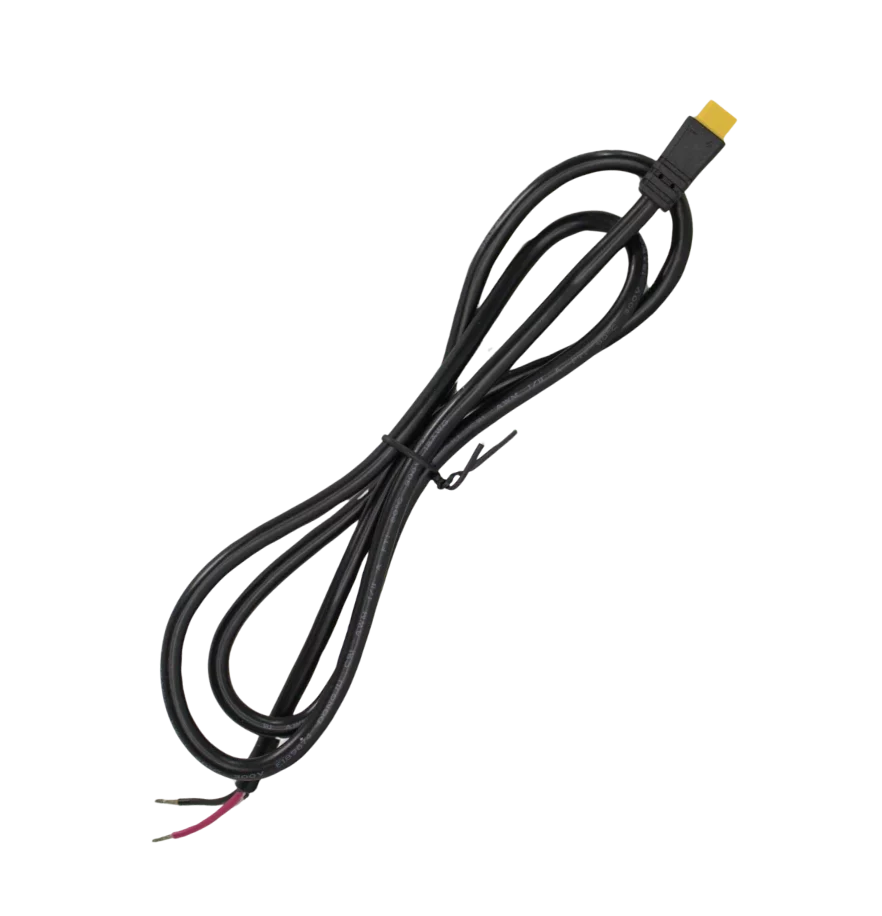

• One meter length for easy routing on benches and racks.
• UL2464 16 AWG two conductor round cable with PVC jacket.

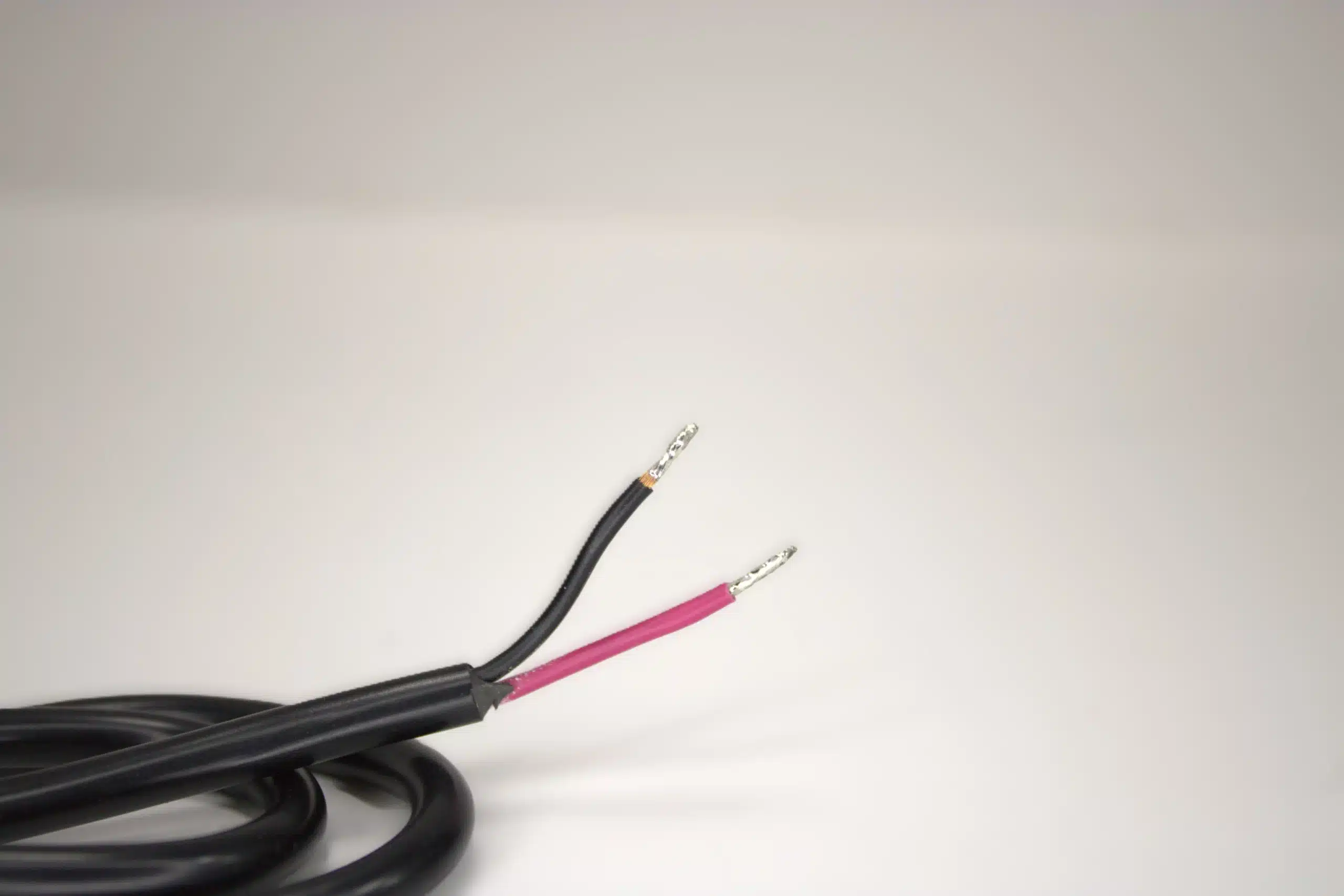

• Stripped and pre tinned leads about five millimeters for fast clamp in.
• Color coded red to V plus and black to V minus for foolproof wiring.

Recommended use

• Pair with a Mean Well LRS-600-12 to power several Bitaxe GT or NerdQaxe++ units.
• Plan about two to eight amps continuous per pigtail depending on your miner settings to keep heat and voltage drop low.
• Land each miner on its own XT30 lead for cleaner power delivery.

Basic specs

• Connector XT30 female.
• Cable type UL2464 16 AWG two core round.
• Length 1 meter.
• Jacket color black with red and black inner conductors.
• End preparation stripped and tinned.

View spec sheet here

Wiring tips

• Power off the LRS-600-12 before landing wires.
• Use ring or fork terminals sized for your power supply.
• Land red to V plus and black to V minus and tighten firmly.
