LilyGo T-Display S3 (H577) Bitcoin Solo Miner Replacement Screen
$19.99

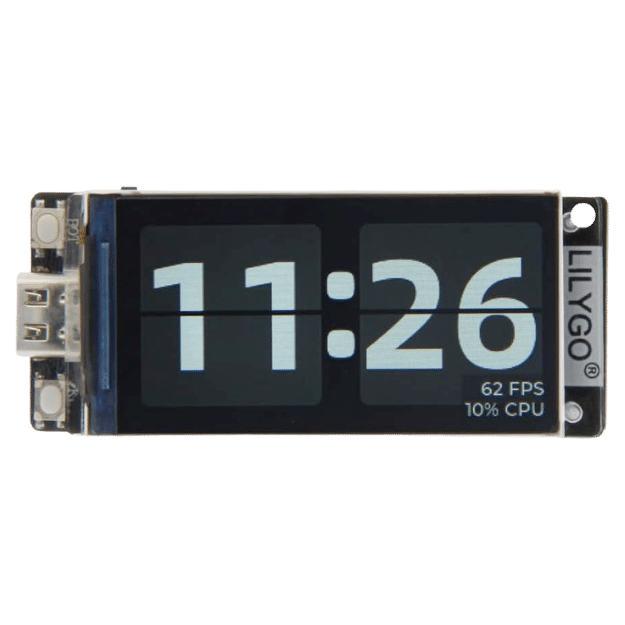

Drop-in OEM replacement screen for NerdQaxe, NerdAxe, the entire Hammer miner lineup, and NerdMiner v2 builds: genuine LilyGo T-Display S3 (H577) with pre-soldered pin headers, 1.9-inch ESP32-S3 color LCD, 170 × 320 resolution, USB-C interface, no soldering required. Same-day shipping from Houston, Texas.
Description

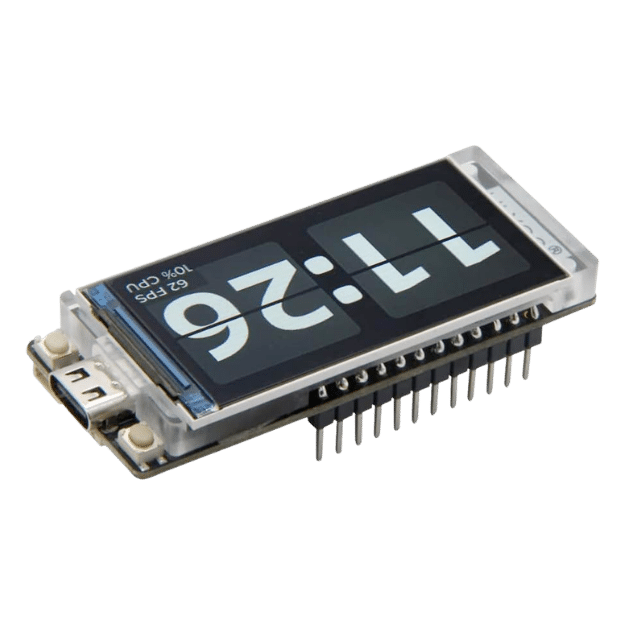

The LilyGo T-Display S3 (H577) is a 1.9-inch ESP32-S3 color LCD module with pre-soldered pin headers, the OEM display used in the NerdQaxe, NerdAxe, NerdMiner v2, and the entire Hammer miner lineup. The genuine LilyGo H577 is sold as a drop-in replacement screen, with authentic Sitronix ST7789V silicon, 16 MB flash, and 8 MB PSRAM, ready to flash and install with no soldering required.

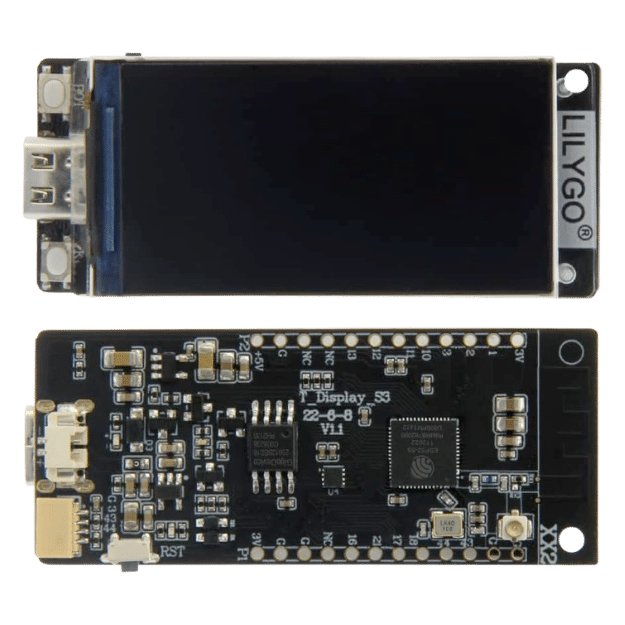

Technical Specifications
| Component | Specification |
|---|---|
| Module | LilyGo T-Display S3, soldered-pin OEM (H577) |
| Manufacturer | LilyGo |
| Manufacturer SKU | H577 / XY230513 |
| MCU | Espressif ESP32-S3R8 dual-core Xtensa LX7 |
| CPU clock | Up to 240 MHz |
| Architecture | Xtensa LX7, 32-bit |
| Flash memory | 16 MB (128 Mb), QIO 80 MHz |
| PSRAM | 8 MB OPI (octal SPI) |
| Flash mode | DIO |
| PSRAM type | OPI |
| Wireless | WiFi 802.11 b/g/n (2.4 GHz), Bluetooth 5 LE + BT mesh |
| Antenna | Onboard PCB antenna |
| Display | 1.9-inch full-color IPS TFT LCD |
| Driver IC | Sitronix ST7789V |
| Resolution | 170 (H) × 320 (V) pixels |
| Display interface | 8-bit parallel I8080 |
| Backlight control | GPIO38 (LCD_BL) |
| Display power enable | GPIO15 |
| Buttons | BOOT (GPIO0), RESET, IO14 user button |
| USB connector | USB Type-C (data + power, USB 2.0 only, no PD negotiation) |
| USB stack | USB Serial / JTAG (CDC + JTAG) |

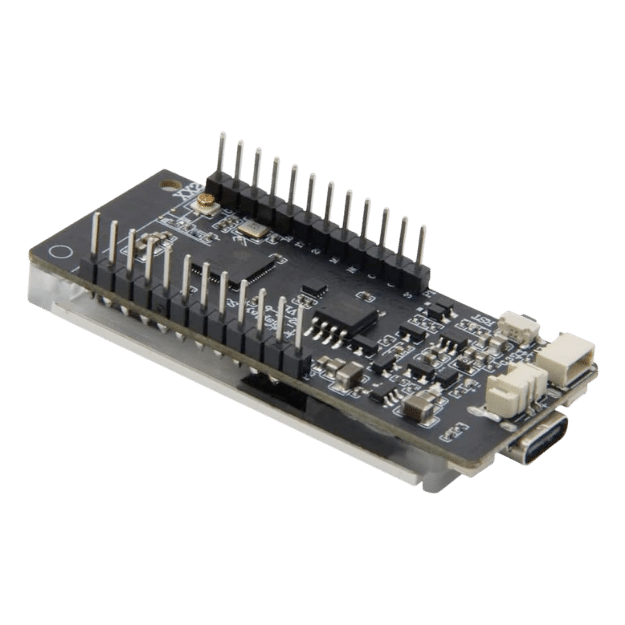

| Header | Pre-soldered 2.54 mm pin headers |

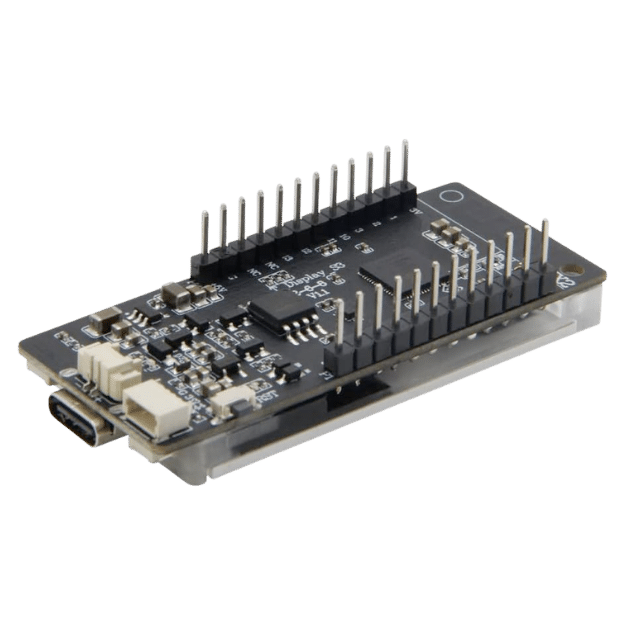

| Auxiliary connectors | STEMMA QT / Qwiic compatible, JST-SH 1.0 mm 4-pin (I²C), JST-GH 1.25 mm 2-pin (battery) |
| Battery support | Single-cell 3.7 V Li-Po via JST-GH connector |
| Battery charger | TP4054 (default 500 mA charging current) |
| Battery voltage detection | GPIO04 (analog) |
| Working voltage | 3.3 V (USB-C powered, 5 V input) |
| GPIO I/O pin count | 48 digital I/O |
| Analog inputs | 20 (ADC) |
| PWM channels | 27 |
| Interrupt pins | 46 |
| Communication | I²C, SPI, UART, native USB |
| Programming platforms | Web flasher (Chrome / Edge / Opera), Arduino IDE, MicroPython, ESP-IDF, PlatformIO, ESPHome |
| Default upload speed | 921600 baud |
| Default partition scheme | 16 MB Flash (3 MB APP / 9.9 MB FATFS) |

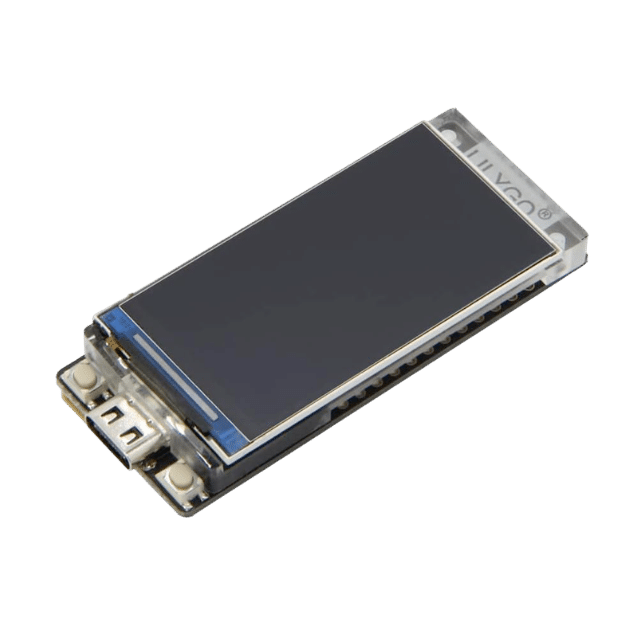

| Board dimensions | 61 × 26 mm |
| Weight | 14 g |
| Color | Black PCB |
| Cable required | USB 2.0 USB-A to USB-C data cable (charge-only cables not supported) |
| Operating frequency band | 2.4 GHz |
| Firmware as shipped | Blank from factory (browser-flashable in ~2 minutes) |
| Open hardware | Schematic, dimensions, and PinMap published on the official LilyGo GitHub repository |
| Country of manufacture | China (LilyGo factory, Shenzhen) |
| Ships from | Houston, Texas, USA |
| Warranty | 90-day Solo Satoshi warranty |
Compatibility
Drop-in physical replacement for every Bitcoin home miner that uses the LilyGo T-Display S3 H577 as its front-panel display, including:
- NerdQaxe+
- NerdQaxe++ Rev 6 / Rev 6.1
- NerdQaxe+ Hydro
- NerdQaxe++ Hydro
- NerdAxe Gamma
- The entire Hammer miner lineup (every SHA-256 and SCRYPT model in the Riversilicon Hammer family ships with the LilyGo T-Display S3 as standard)
- NerdMiner v2 builds.
- Other open-source ESP32-S3 miners that specify the H577 form factor
Two-Minute Browser Flash, No Soldering, No Driver Install
The screen ships blank from the LilyGo factory. Flashing runs entirely in your web browser:
- Connect the screen to your computer with a USB-C data cable. Charge-only cables will not work.
- Open Chrome, Edge, or Opera. Firefox and Safari do not support the Web Serial API and cannot flash ESP32-S3 boards.
- Put the board into download mode: hold the BOOT button, briefly press and release the RESET button, then release BOOT. The board re-enumerates on USB as a serial device, ready for the flasher.
- Visit the official web flasher for your firmware:
shufps.github.io/nerdqaxe-web-flasherfor Nerd*axe,nerdminer.io/flashorbitmaker-hub.github.io/diyflasherfor NerdMiner v2. - Click “Connect,” select the LilyGo board, choose your firmware version, and click “Install.”
- Unplug the screen, plug it into the USB-C cable on your miner, and the dashboard takes over.
Future firmware updates can be performed over the air through the miner’s web dashboard. The browser flasher is only needed for the initial flash, recovery from a brick, or a switch between firmware projects.
What’s in the Box
- 1 × OEM LilyGo T-Display S3 (H577 soldered-pin), blank from the factory
- 1 X JST 1.25mm 2P
- Anti-static packaging
USB-C cable not included. The cable already on your miner is reused for installation, and any USB-C data cable works for the initial browser flash. Replacement cables are stocked in accessories.
Buy This Replacement Screen If You Need To:
- Repair a failed display on a NerdQaxe, NerdAxe, Hammer, or NerdMiner v2 (cracked LCD, dead USB-C port).
- Stock a spare for a multi-miner fleet so a downed display does not cost you uptime.
- Build a NerdMiner v2 from scratch.
- Convert between firmwares using a single physical board and the official browser flashers.
- Develop your own ESP32-S3 project: the H577 is a full development board supporting Arduino IDE, MicroPython, ESP-IDF, and PlatformIO.
Order From Solo Satoshi
Order before 12:00 PM CST Monday through Friday and your replacement screen ships the same business day from Houston, Texas. Every H577 we sell is the genuine OEM LilyGo soldered-pin module with authentic Sitronix ST7789V silicon, full 16 MB flash, and 8 MB PSRAM. Add to cart above to get your miner back on the dashboard.
